Wilwood 140-10209-D Cpb Disc Brake Kit – Bolt-On Performance Braking System

Description

Brand: Wilwood Disc Brakes
Manufacturer’s Part Number: 140-10209-D
Part Type: Disc Brake Kits
Product Line: Wilwood CPB Disc Brake Kits
Automotive Fittings Part Number: WIL-140-10209-D
UPC: 889545008913
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (mm): 4 x 100.00mm
Rear Rotor Included: Yes
Rear Rotor Style: Cross-drilled/Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.19 in./309.63mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: One
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Black
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Mechanical caliper
Minimum Recommended Wheel Diameter (in.): 15 in.
Offset (in.): 2.460 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Street Perf – Heavy Duty/Rally – Medium Duty/Road Race – Light Duty/Drag Race – Heavy Duty
Description:

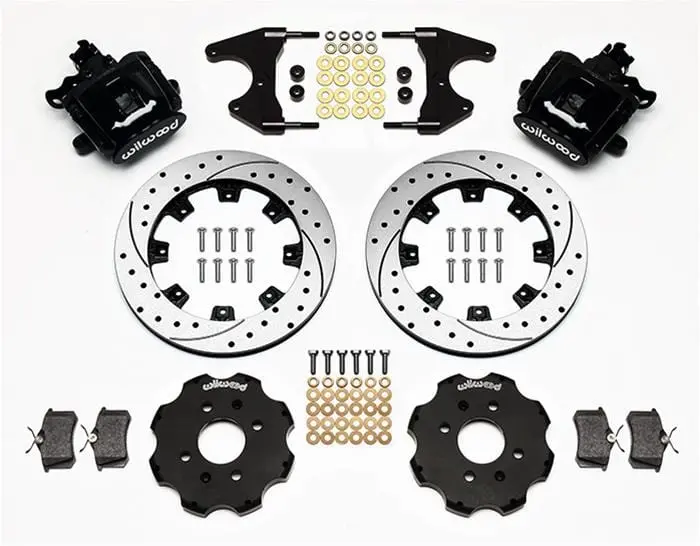

These Wilwood CPB disc brake kits use hydraulic pressure from the master cylinder for stopping power and an internal mechanical lock within the caliper for a parking brake. They are built primarily for front-wheel drive and select rear-wheel drive vehicles with axles that are not well suited for internal shoe-style parking brakes. The kits include single-piston brake calipers, coupled with oversized two-piece brake rotor assemblies with aluminum hats and high-friction BP-10 compound brake pads. The Wilwood CPB disc brake kits also provide the correct balanced brake performance and matching style to complement front big brake upgrade kits.
