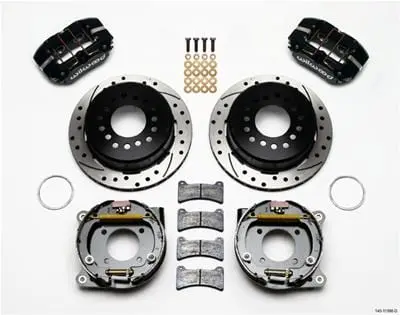

Wilwood Forged Dynapro Compact Rear Parking Brake Assembly (Part #140-11398-D)

Description

Brand: Wilwood Disc Brakes
Manufacturer’s Part Number: 140-11398-D
Part Type: Disc Brake Kits
Product Line: Wilwood Forged DynaPro Low-Profile Rear Parking Brake Kits
Automotive Fittings Part Number: WIL-140-11398-D
UPC: 889545013238
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
Differential Case Design Type: GM 8.875 in. (12-bolt), passenger car
Axle Housing Flange Style: 10/12 Bolt Chevrolet (3.072 in. x 2.40 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Cross-drilled/Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 11.00 in./279.40mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Black
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Internal drum
Minimum Recommended Wheel Diameter (in.): 14 in.
Offset (in.): 2.750 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: For OE C-clip axles only. Does not support special end or C-clip eliminator modifications. Installation on 10-Bolt differential requires Wilwood 300-11532 register ring.
Description:
For popular musclecar rear axle applications needing a parking brake assembly and some extra clearance, Wilwood Forged DynaPro low-profile rear parking disc brake kits provide the solution. Forged billet DynaPro low-profile 4-piston calipers, 11 in. one-piece hat and rotor assemblies, and high-friction pads provide optimal balanced braking for your performance street/strip and show machines. Choose either solid-surface or cross-drilled and slotted rotors to personalize your style and optimize brake performance. These Wilwood brake kits also feature a neatly hidden internal shoe system for a clean installation and superior static holding power for parking. Get bolt-on performance and looks for competition or show with Wilwood Forged Dynapro low-profile rear parking disc brake kits.
